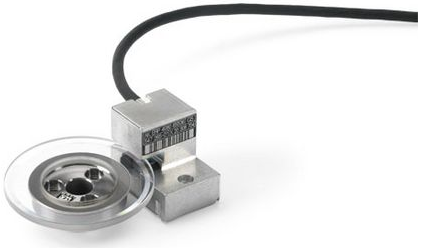

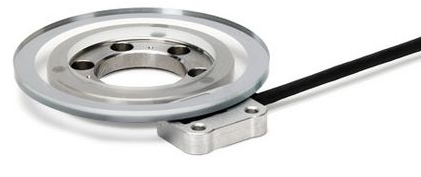

Scanning head

AK ERO 6080

AK ERO 6070

Interface

1 VPP

TTL x 5

TTL x 10

TTL x 50

Reference mark signal

Square-wave pulse

Integrated interpolation*

–

5-fold

10-fold

50-fold

Cutoff frequency –3 dB

≥ 200 kHz

–

–

–

Scanning frequency

–

≤ 200 kHz

≤ 100 kHz

≤ 25 kHz

Edge separation a

–

≥ 0.220 μs

≥ 0.220 μs

≥ 0.175 μs

Electrical connection

Cable 3 m with male D-sub connector (15-pin), interface electronics for ERO 6070 in the connector

Cable length

≤ 30 m

Voltage supply

5 V DC ± 0.25 V

Current requirement

< 100 mA (without load)

< 200 mA (without load)

Vibration 55 to 2 000 Hz

Shock 6 ms

200 m/s² (EN 60 068-2-6)

500 m/s² (EN 60 068-2-27)

Operating temperature

0 °C to 50 °C

Weight Scanning head

(approx.) Connector

Cable

6 g (without cable)

32 g

22 g/m

6 g (without cable)

140 g

22 g/m
